Steel Cable-Stayed Bridge

No.46

  Cable-stayed bridge, also known as diagonal bridge, is a kind of bridge where the main beam is directly pulled on the bridge tower with many cables. It is a structural system composed of a pressurized tower, a strained cable and a bent beam body.

  • Steel Cable-Stayed Bridge
  • Steel Cable-Stayed Bridge
  • Steel Cable-Stayed Bridge
  • Steel Cable-Stayed Bridge
  • Steel Cable-Stayed Bridge
  • Steel Cable-Stayed Bridge

Description

Development, Achievements, and Possibilities

  Cable-stayed structures are the youngest, fastest-developing, and most promising bridge systems.

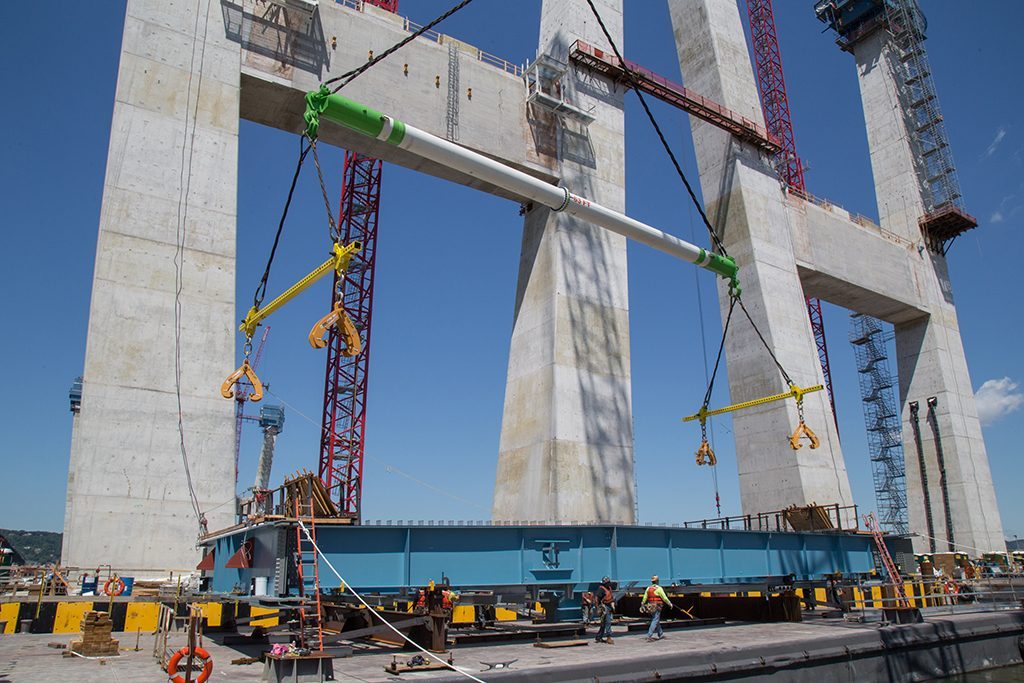

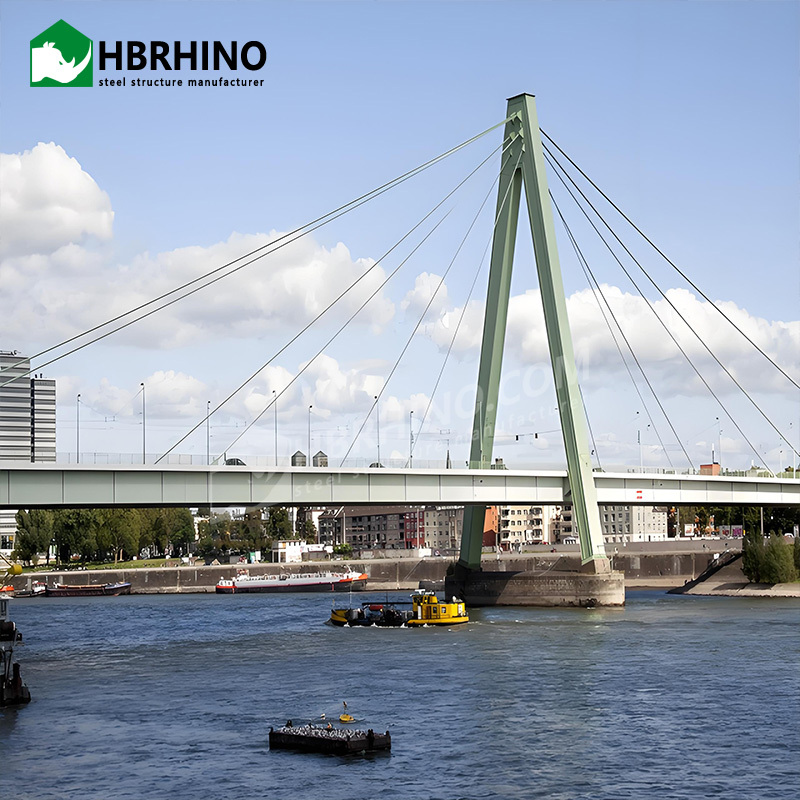

  Cable-stayed bridges are a subcategory of suspended structures. A cable-stayed bridge is similar to a suspension bridge in having towers and a deck-girder supported by cables; however, its diagonal cables transfer the vertical loads from the deck directly to the towers. Thus, the main deck-girder of a cable-stayed bridge works like a continuous beam on cable supports (more flexible than pier supports) with additional compression force throughout the deck. A cable-stayed bridge is also a prestressed system as its cable-stays are additionally tensioned to counterbalance a significant part of the vertical loads on the main deck-girder.

  The Strömsund Bridge in Sweden, completed in 1956 with a 182-meter (597-foot) main span, is considered the first modern cable-stayed bridge. For the following 65 years, cable-stayed bridges have seen a dramatic increase in both the number of new structures and in long-span achievements. By 1995, there were only 3 cable-stayed bridges with spans over 500 meters (1,640 feet); 25 years later, there are already 67 cable-stayed bridges with spans over 500 meters (including three over 1,000 meters or 3,280 feet). Another 29 with spans over 500 meters, with some over 800 meters (2,624 feet), are currently under construction.

  The efficient range of cable-stayed bridges is moving towards even longer spans. There is no other bridge structural system exhibiting such rapid development. Most cable-stayed bridges are visually beautiful, and some are among the most impressive of engineering achievements.





Product Description

       The cable-stayed bridge is mainly divided into three parts: main beam, cable tower and stay cable.

  The main beam generally adopts concrete structure, steel-concrete combination structure.

  Steel structure or steel and concrete mixed structure.

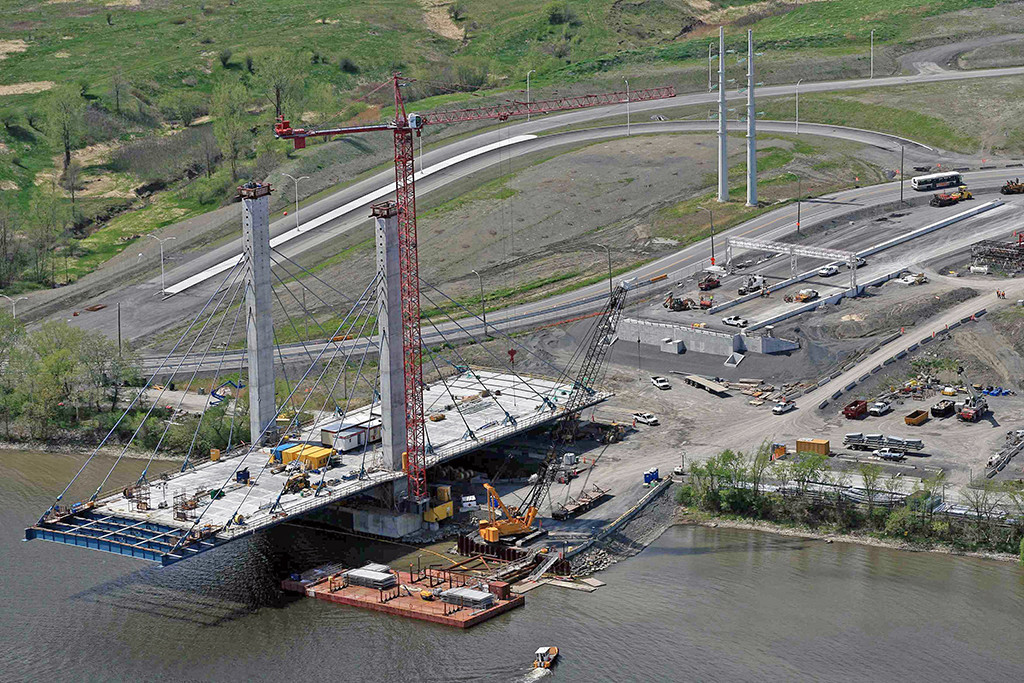

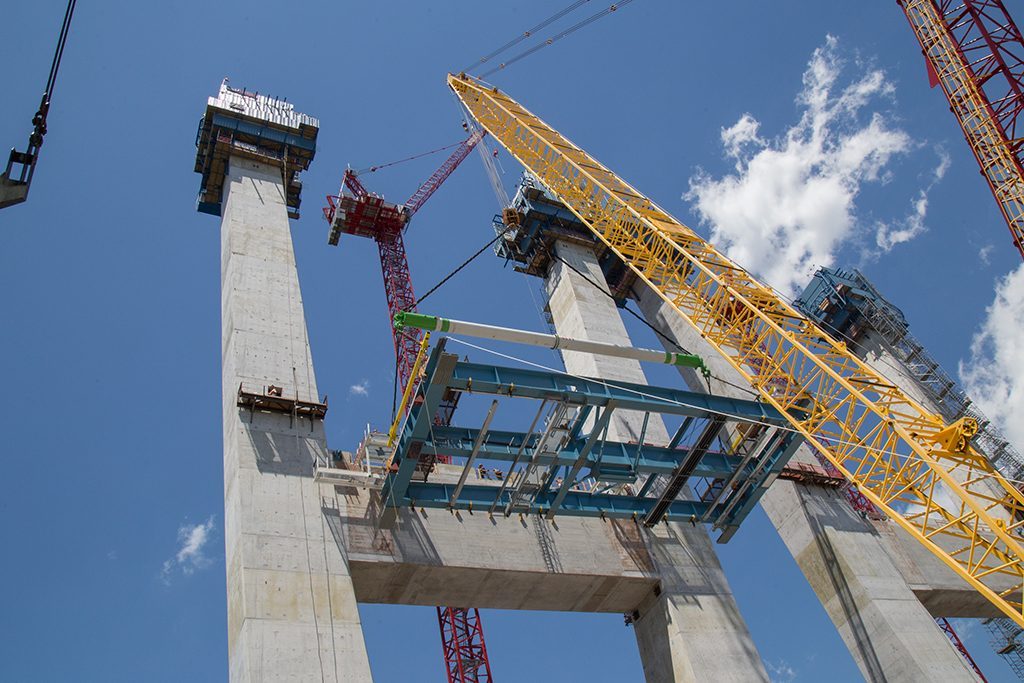

  Cable tower -it adopts concrete, steel-concrete combination or steel structure. Most of them are concrete structures.

  Stay cable - is made of high strength material (high strength steel wire or steel strand).

  Cables: The cables of a cable-stayed bridge are arranged in a fan-like pattern, extending from the towers to the bridge deck. The cables are made of high-strength steel and are anchored both at the towers and the bridge deck.

  The main beam is supported by the various points of the cable, and the continuous beam with multi-span elastic support is stressed, the internal bending moment of the beam is greatly reduced, and the size of the main beam is greatly reduced (the beam height is generally 1/50 ~ 1/200 of the span, or even smaller), which reduces the structural weight and greatly increases the crossing capacity of the bridge.

  The load transfer path of the cable-stayed bridge is: the two ends of the cable-stayed cable are respectively anchored on the main beam and the cable tower, and the dead load and vehicle load of the main beam are transferred to the cable tower, and then transmitted to the foundation through the cable tower.





GREAT WALL STEEL BRIDGE SPECIFICATION
GREAT WALL
STEEL BRIDGE
Bailey bridge(Compact-200, Compact-100, LSB, PB100, China-321,BSB)
Modular bridge( GWD, HBD60,CB300,Delta, 450-type,etc),
Truss Bridge,Warren bridge,
Arch bridge, Plate bridge,Beam bridge,Box girder bridge,
Suspension bridge,Cable-stayed bridge,
Floating bridge,etc
DESIGN SPANS 10M TO 300M Single span
CARRIAGE WAY SINGLE LANE, DOUBLE LANES,MULTILANE,WALKWAY,ETC
LOADING CAPACITY AASHTO HL93.HS15-44,HS20-44,HS25-44,
BS5400 HA+20HB,HA+30HB,
AS5100 Truck-T44,
IRC 70R Class A/B,
NATO STANAG MLC80/MLC110.
Truck-60T,Trailer-80/100Ton,etc
Korea 1st grade bridge DB24
STEEL GRADE  EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C
AS/NZS3678/3679/1163/Grade 350,
ASTM A572/A572M GR50/GR65
GB1591 GB355B/C/D/460C,etc
CERTIFICATES ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP,etc
WELDING AWS D1.1/AWS D1.5
AS/NZS 1554 or equivalent
BOLTS ISO898,AS/NZS1252,BS3692 or equivalent
GALVANIZATION CODE ISO1461
AS/NZS 4680
ASTM-A123,
BS1706
or equivalent





The primary construction materials used in cable-stayed bridges are:


  For decks: reinforced or prestressed concrete, composite concrete-steel, or orthotropic steel decks;

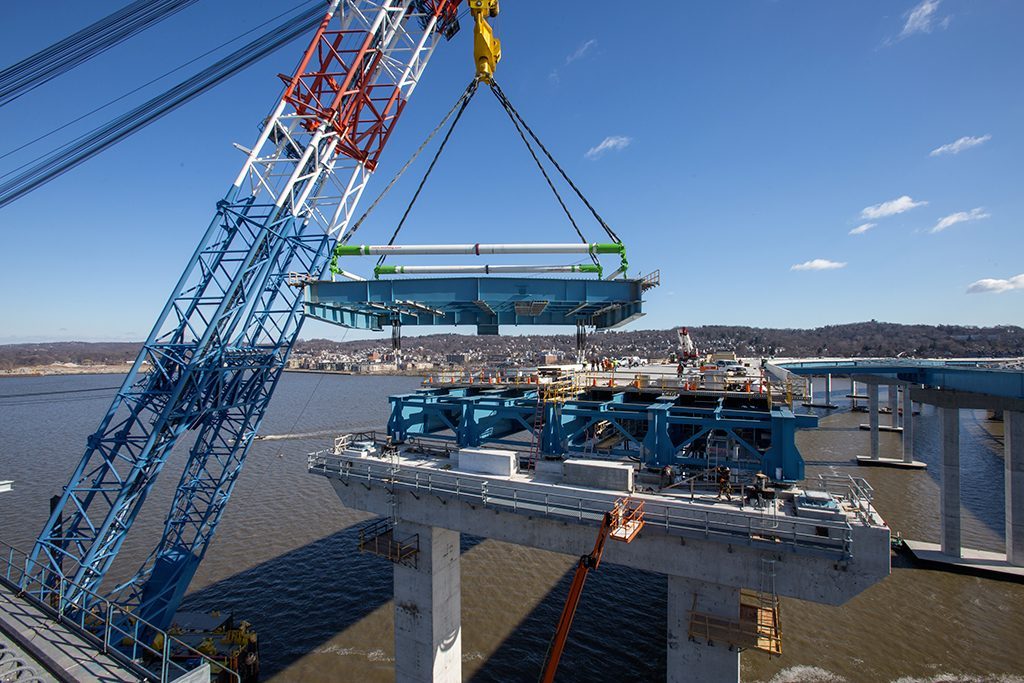

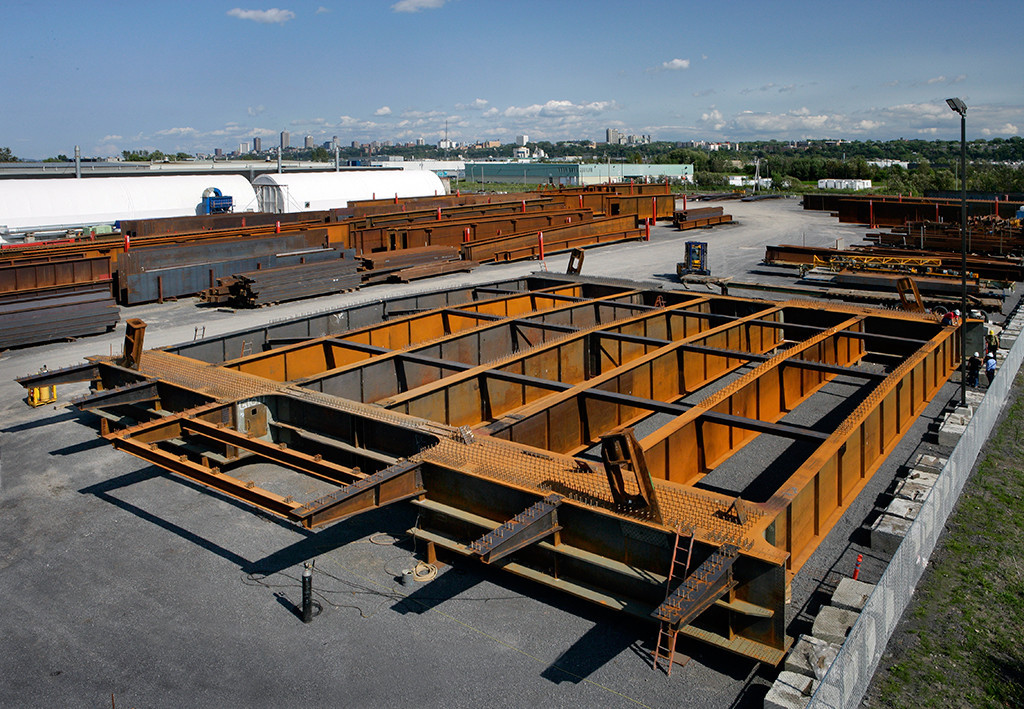

  For deck-girders: beams of prestressed concrete or steel, box girders of prestressed concrete or steel, similar to those in modern suspension bridges;

  For towers: steel, reinforced or prestressed concrete, composite steel-concrete;

  For cables: high-strength steel wires, usually 270 grade (270 ksi, or 1,860 MPa), built from 7-wire, ⅜-inch (9.5 millimeters) strands per ASTM A886, other higher-grade steel wires, carbon fiber-reinforced polymers (CFRP), or composites. Prestressed concrete has been used in the past, but should be avoided as it has been proven unsafe on some failures such as the Morandi Bridge;

  For piers and foundations: reinforced concrete with or without piles depending on the soil.

  For long-span bridges, foundations on soft soils, or for bridges in high seismic areas, it is preferable to use predominantly steel structures to reduce the self-weight and the related earthquake forces.





  FAQ

  Q: Which countries do you export to?

  A: Our company's products have been exported to dozens of countries and regions. Including: Nepal, Cambodia, Laos, Vietnam, Malaysia, Myanmar, Philippines, Ecuador, Colombia, Barbados, Trinidad and Tobago, Dominica, Papua New Guinea, Solomon Islands, Kenya, Tanzania, Zambia, Congo, Tajikistan, Georgia, etc.

  Q: Are you a factory or a trade company ?

  A: We are an industry and trade company. The factory covers an area of 47,000 square meters, the production workshop is 22,000 square meters, and the office area is 5,000 square meters. It has 12 production lines of Bailey Bridge, various steel Bridges and various steel structure products, with a lifting capacity of 100 tons. Annual output is more than 50,000 tons. The company has its own import and export rights, with 20 years of export business experience.

  Q: Do you accept custom processing?

  A: Our company has an efficient and flexible technical team, we can process custom-made a variety of non-standard Bailey bridge, steel bridge, steel structure.

  Q: Can your company meet American standards?

  A: Yes, our products not only meet the AASHTO American standard, but also meet the British BS5400, Australia AS5100 and other international standards.

  Q: Can we be your agent or distributor?

  A: Our company is recruiting powerful partners all over the world for common development and win-win . Look forward to long-term cooperation with you!

  Q:How soon can I receive your reply after I send you my inquiry?

  A: We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicate the technical parameters,we will provide quotation and preliminary design within 24 hours.
